Ricky116 · 04-20-2008, 10:26 PM

Alright so... i've got a 96 base that i'm really interested in TTing. i'm not a mechanic but after reading a lot on the twin turbo conversion i feel like i'm capable to do it. i do have one big question that is bothering me and it's that i don't really fully understand what's going on with the oil pan and what i need to get done to it. i understand that i need to have at least one, maybe two? lines that go into the oil pan for the oil dump from the turbo. I guess i'd like to see pictures of someone's modified oil pan and i'd like to know the best way to go about getting it done and if i could do it myself. any help would be greatly appreciated!
Ricky

92PearlTT · 04-20-2008, 11:02 PM

You need to modify you oil pan so the turbo oil return lines can dump the oil back into the pan. You need to weld the oil return line brackets to your pan and drill the holes out for the oil and bolts to go through. The way I am gonna do it is get the turbos and lines completly bolted up then mark where I need to make the holes then take it apart and drill the holes and weld the brackets on. My engine is out and completly disassembled so thats the easiest way for me to do it.

3000GT-LA · 04-20-2008, 11:11 PM

i heard that if u buy a vr4 oil pan its the same as a n'a is it true so u wont have to modify your oil pan......just wondering is been bothering me

92PearlTT · 04-20-2008, 11:13 PM

I am fairly sure that a tt oil pan will not fit because of the oil pumps are different on na's and tt's.

3000GT-LA · 04-20-2008, 11:30 PM

Quote:

Originally Posted by 92PearlTT

I am fairly sure that a tt oil pan will not fit because of the oil pumps are different on na's and tt's.

ok then so u have to modify the n/a oil pan ....imdoing a tt conversion now and i need to modify the oil panand i need a vr4 water housing

92PearlTT · 04-21-2008, 12:50 AM

Quote:

Originally Posted by 3000GT-LA

ok then so u have to modify the n/a oil pan ....imdoing a tt conversion now and i need to modify the oil pan and i need a vr4 water housing

Yup modify the pan and you need the vr4 water housing for the turbo coolants lines.

Hannibalzero · 04-21-2008, 10:43 AM

Quote:

Originally Posted by 92PearlTT

Yup modify the pan and you need the vr4 water housing for the turbo coolants lines.

If you find anybody doing a large turbo conversion, you may want to check to see if they are going to run coolant lines. You may be able to work out a trade.

chrisgtoman · 04-24-2008, 10:58 PM

Quote:

Originally Posted by 92PearlTT

I am fairly sure that a tt oil pan will not fit because of the oil pumps are different on na's and tt's.

I have a 91 NA and a 91 TT oil pan fit just fine....

92PearlTT · 04-25-2008, 01:35 AM

Quote:

Originally Posted by chrisgtoman

I have a 91 NA and a 91 TT oil pan fit just fine....

Ya I believe 1st gens are the same.

J-Groove · 04-25-2008, 08:12 AM

Quote:

Originally Posted by chrisgtoman

I have a 91 NA and a 91 TT oil pan fit just fine....

Yup, that will work.

A '91 - '92 (two bolt) TT oil pan will bolt up to a N/A block, but if you have a 2nd gen N/A ('94+) the pan will not work with your oil pump.

So unless you have a '91-'92 block that you're doing the conversion on, your best option is to modify your stock N/A pan.

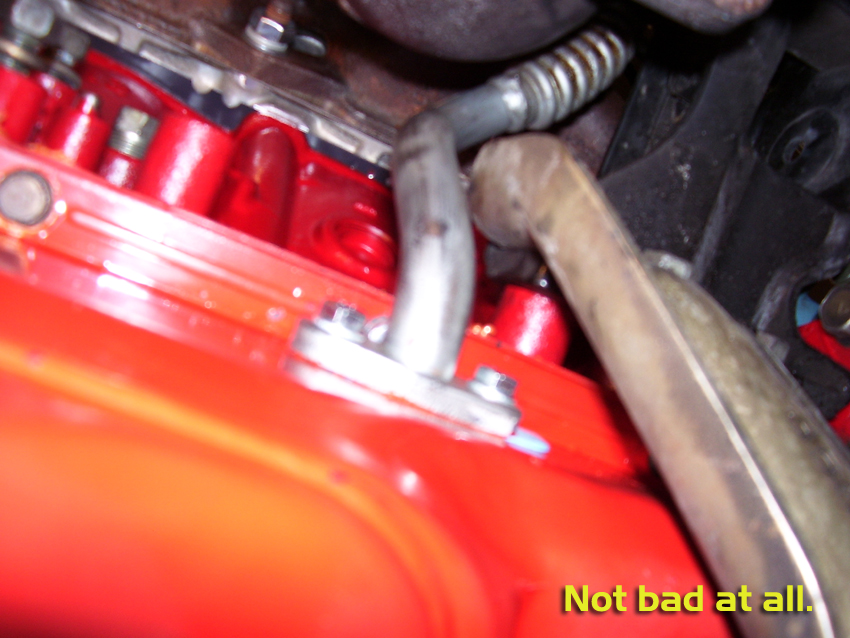

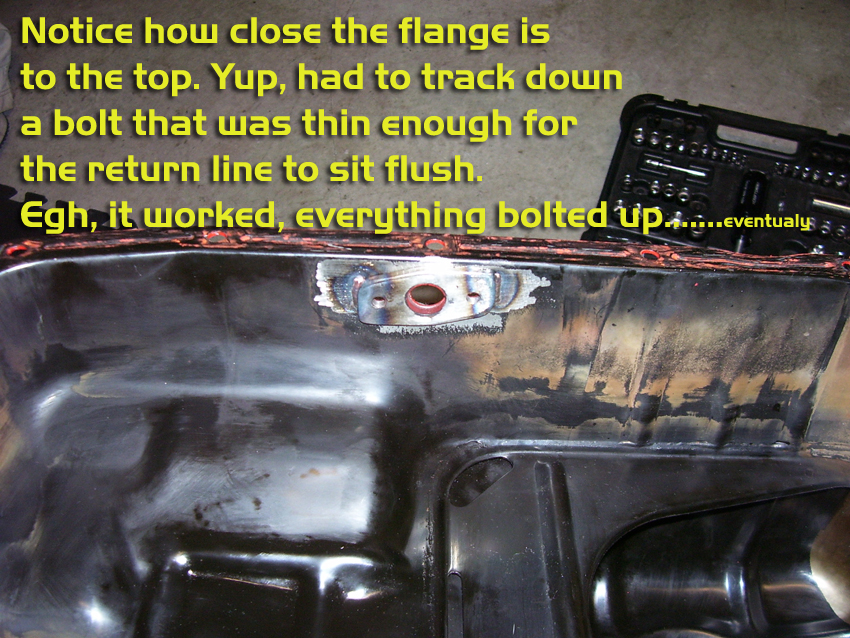

Here are some pics of my N/A pan.
