green-lantern TT conversion - Page 4 - 3000GT/Stealth International Message Center

green-lantern · 11-04-2007, 12:06 PM

anybody ever use this before?

http://www.saabcentral.com/~munki/te...retch_type.htm

Mr.3000 · 11-04-2007, 12:25 PM

Hmm that is pretty interesting. When I said replace the whole axle I knew you could just replace the CV boot but I didn't know how. However, after seeing that, I think it is worth a shot

SOHCStealth · 11-05-2007, 07:35 AM

Quote:

Originally Posted by green-lantern

note to self

MAKE SURE THAT THE AXLE ARM IS REMOVED FROM THE MOTOR BEFORE TRING TO PULL IT.

you think I should replace the whole damn thing?

Save yourself a bunch of money and just replace the torn boot. I can almost guarantee that you did not damage the CV joint itself.

J-Groove · 11-05-2007, 09:06 AM

Lookin gat that link you posted up, I thoink it would be worth a try.

-John

thetjkid · 11-11-2007, 10:27 PM

any more updates on your progress... i love reading these posts, they get me so psyched to do my own... i just started pulling my motor today... i'm taking my time and doing things right. the motor will be out by tomorrow then i can start tearing it down for the 120k first... then i'll be going from there... keep us posted with your progress tho... i'm going to use advice from all of these types of posts for my own project

Mr.3000 · 11-11-2007, 11:10 PM

Yea where's the update man!! Lol

green-lantern · 11-12-2007, 05:28 AM

Got the turbos rebuilt and some of the other stuff bolted down. I would have pics up but my internet keeps going down at home. I was going to go get my intercoolers and pipes from coops last night but it got to late and I wanted to finish the other turbo. I will have some pics tonight when I get home.

green-lantern · 11-13-2007, 10:22 AM

I removed the clamp first. It makes the big snap ring easier to get to.

I had to pry a little to get them apart.

Since they don't seem to sell a good pair of large snap ring pliers around here I modded a pair of pliers with a grinder and it worked pretty good.

little more prying

I lined the arrow on the nut to the dowel hole then also used a sharpie. (of course the sharpie can come off easy when cleaning)

on the compressor side I marked the wheel and the nut so when putting it back together I had a good idea how hard to tighten it down. I put a lite scratch on the wheel and housing because when cleaning I know I would remove the sharpie mark there.

green-lantern · 11-13-2007, 10:37 AM

removed the compressor wheel and the shaft.

NASTY!

time to pry again

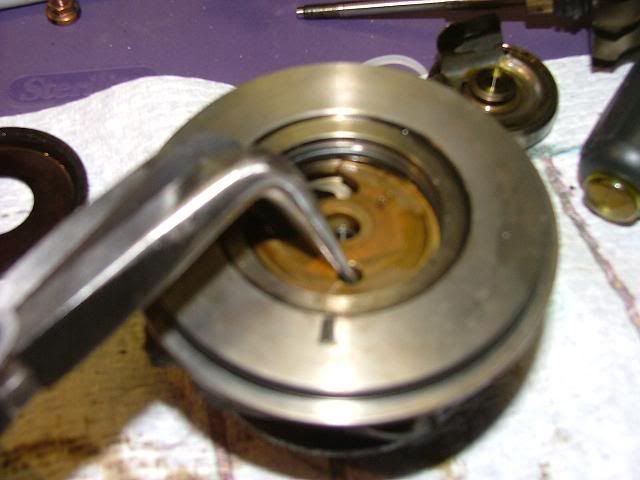

for the love of god take that o-ring out before removing this plate.

green-lantern · 11-13-2007, 10:53 AM

I just realized how little pictures I took putting it back together. LOL

I just oiled the hell out of every thing and put it back like I took it apart.

Yea no more shaft play!

this is the link I used and I did post it in the TT conversion link thread.

http://www.stage-infinity.com/2007/0...turbo-rebuild/
